Customized Automatic Insulating Glass Production line
Jingyou Tailor-Made Insulating Glass Machinery Solutions
Jingyou Glass Machinery, with years of expertise and a track record of successful partnerships with industry leaders, stands as your premier provider of custom insulating glass production lines. We offer a comprehensive range of products, including fully automatic vertical lines for crossbeam inflation, internal plate inflation, and external inflation techniques. Our commitment to customized design, personalized configurations, and precise engineering ensures that each production line meets the highest standards of efficiency, accuracy, and quality.
Our services extend to custom machinery configurations, private label solutions, and OEM/ODM capabilities, allowing your operations to excel in the competitive glass manufacturing market. We specialize in tailored solutions for hollow glass processing, from gluing and cleaning to sophisticated gas filling, perfect for creating high-performance and energy-efficient glass units that align with your company’s production goals.
Our insulating glass production lines are engineered using eco-friendly practices and cutting-edge manufacturing technologies, ensuring durability and exceptional operational performance. Certified by international standards, Jingyou Glass Machinery upholds stringent quality control throughout all production processes.
Whether you require single units, full-scale automated lines, or project-based custom solutions, Jingyou Glass Machinery delivers comprehensive services that bolster your manufacturing capabilities. We are not just a supplier; we are your partner in innovating and expanding your glass production capacity. Contact us today to begin your journey with a trusted manufacturer of specialized glass production machinery from China.
Automatic Insulating Glass Crossbeam Gas Filling Production Line
Automatic Insulating Glass Gas Filling Production Line
Automatic Insulating Glass Plate Pressure Servo Production Line
Automatic Insulating Glass External Lamination Production Line
Insulating Glass Automatic Sealing Robot
Vertical Glass Washing Machine
Let's Talk About Customizing Your Unique Production Line
Supplier Selection and Pre-Cooperation Preparation Guide
How to Find Reliable Insulating Glass Production Line Factory in China?
- Method 01: Online Search
Finding real and reliable suppliers for an insulating glass production line in China, especially when many do not operate on major B2B platforms like Alibaba due to high costs, requires a more nuanced approach.
| Method | Description | Advantages | Considerations |
|---|---|---|---|
| Google Search | Use Google to search for manufacturers by using industry-specific keywords like "insulating glass production line manufacturer in China". | Broad reach, uncovering manufacturers who may not use mainstream platforms. | Requires thorough vetting of results. Websites can be outdated, and some manufacturers might lack an online presence. |
| Google Ads | Pay attention to Google Ads during your search. Manufacturers invest in ads to target potential buyers directly. | Ads are often from companies looking actively for international clients. | Ads don't guarantee reliability; further validation of the manufacturer is necessary. |
| B2B Platforms (e.g., Alibaba) | While acknowledging that many premier manufacturers might avoid these platforms, they are still a resource for comparison and initial contact. | Platforms offer user reviews, trade assurance, and easier initial communication. | High fees might deter some top-quality manufacturers, potentially limiting the selection to more commercial, less specialized factories. |
- Method 02:Industry Trade Shows and Exhibitions
When you’re looking to make a significant investment in an insulating glass production line, there’s no substitute for seeing the machinery in action and meeting the manufacturers face-to-face. Industry trade shows and exhibitions provide a unique platform where you can engage directly with a wide range of suppliers, all under one roof.
- China Glass Expo: Beijing/Shanghai, China
- Glasstech Asia: Varies, Asia-Pacific
- Glasstec: Düsseldorf, Germany
- GlassBuild America: United States
- Vitrum: Milan, Italy
- Mir Stekla: Moscow, Russia
- Glass South America: Brazil
- Method 03: Direct Factory Visit
Factory Visits
Local Sourcing Agents
Top Insulating Glass Equipment Manufacturing Hubs in China
| Province | City | Characteristics |
|---|---|---|
| Shandong | Jinan | Known for a high concentration of machinery manufacturing, Jinan specializes in a broad range of insulating glass production equipment, focusing on innovation and efficiency in automation. Common products include automatic insulating glass production lines and component machinery like glass washing machines and sealing robots. |
| Jiangsu | Nanjing | Nanjing manufacturers are recognized for their advanced technological integration in insulating glass machinery, emphasizing precision engineering. Key products include high-speed automatic insulating glass lines and specialized equipment for coating and tempering. |
| Guangdong | Shenzhen | Shenzhen is a hub for high-tech machinery, including insulating glass equipment that often features the latest in smart technology. The focus here is on energy efficiency and integration with IoT (Internet of Things) for enhanced production analytics and remote management. |
| Zhejiang | Hangzhou | Hangzhou offers a variety of insulating glass equipment with a focus on customizability and flexibility, catering to both small and large-scale operations. Equipment often includes modular designs that allow for easy upgrades and adjustments based on changing production needs. |
| Hebei | Shijiazhuang | Known for durable and cost-effective machinery, Shijiazhuang's manufacturers produce robust insulating glass equipment suitable for heavy-duty operations, emphasizing longevity and low maintenance costs. |
What Custom Options Are Available?
Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.
- 01 Loading Section Customizations
Automated Loading Mechanisms
Adaptive Suction Technology
- 02 Cleaning Section Customizations
3 Pairs of Glass Cleaning Brushes
Optional Variable Speed Frequency Drive
- 03 Cleaning and Discharging Section Customizations
Advanced Inspection Systems
Buffer Storage Solutions
- 04 Check Aluminum Frame Section Customizations
Optional Aluminum Profile Positioning
Optional Aluminum Profile Backrest
Optional Aluminum Frame Positioning for Specialized Processing
- 05 Transition Section Customizations
Choice of Inner or Outer Closing Function
- 06 Plate Pressing Section Customizations
Servo Front Panel Drive System
Optional Remote Communication Function
Optional Front and Rear Lifting Platforms
- 07 Unloading Section Customizations
Automated Unloading Systems

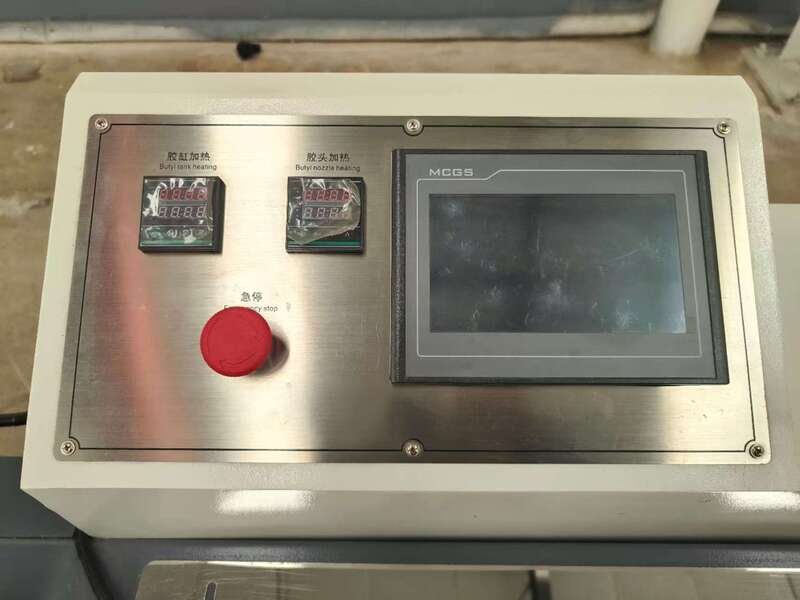

Enhanced Safety Features
Is it Necessary to Make Site Planning?
Yes, effective site planning is essential for ensuring that your production line operates at peak efficiency, maintains safety, manages costs effectively, and has the flexibility to grow and adapt to future changes. It’s an integral part of setting up a successful manufacturing operation.
Efficiency Optimization
Proper site planning ensures that the workflow is streamlined, which minimizes the time and effort required to move materials through different stages of production. This can significantly increase production efficiency and reduce the risk of bottlenecks.
Safety Compliance
A well-planned site layout helps ensure compliance with safety regulations. Adequate space around machinery, clear pathways, and well-placed emergency exits are vital for maintaining a safe work environment.
Maintenance Access
Strategic site planning allows for easier access to equipment for maintenance and repairs. Regular maintenance is essential for the longevity of the machinery and minimizing downtime, and having sufficient space for these activities is a must.
Cost Management
Efficient site planning can also help in managing operational costs by reducing wasted space and optimizing energy use. Proper placement of equipment can lead to reductions in the time and energy required to produce the finished goods.
Future Scalability
Good site planning takes into account not only the current needs but also future expansion. Facilities that are designed with scalability in mind can adapt more easily to increased production demands or technological upgrades without major reconfigurations.
Quality Control
By organizing the production line to minimize contamination and errors—for example, by logically separating the cleaning section from areas where glass is handled manually—site planning can directly impact product quality.

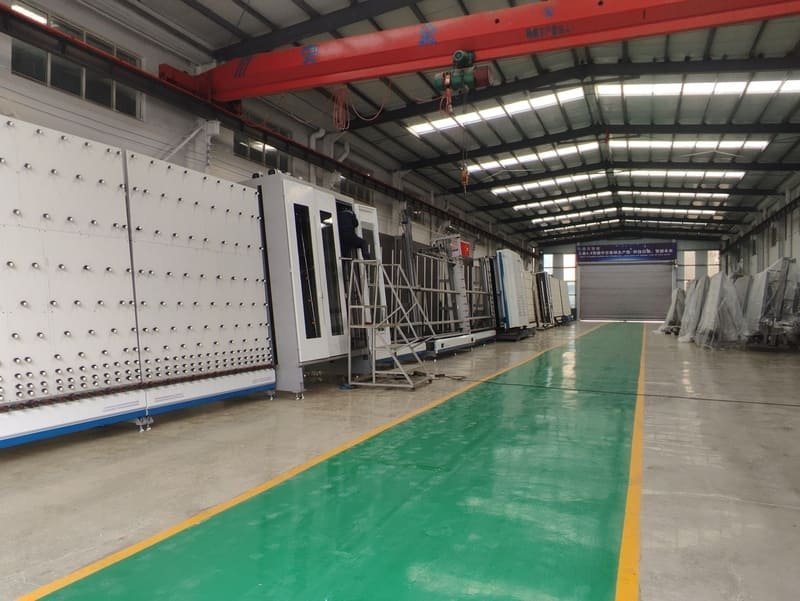

1. Space Allocation
Spacious Layout
Ensure that there is ample space around each section of the production line to allow for easy access and maintenance. This is essential for safety and efficiency, particularly for sections like the loading and unloading areas where operators interact frequently with the machinery.
Dedicated Areas
Designate specific areas for each section of the production line to streamline the flow of materials and minimize transport distances between stages. This reduces handling time and potential damage to glass panes.
2. Workflow Optimization
Linear Flow
Arrange the production sections in a linear sequence from the loading section to the unloading section. This natural progression minimizes cross-traffic and logistical bottlenecks, enhancing the overall speed and efficiency of the production process.
Buffer Zones
Incorporate buffer zones between key production stages to accommodate any delays or maintenance issues without disrupting the entire line. This is particularly important between the cleaning and pressing sections where precise timing is crucial.
3. Safety and Accessibility
Emergency Access
Ensure clear access to emergency exits and safety equipment. Each section should have clearly marked paths that are free from obstructions, ensuring quick evacuation and access during emergencies.
Maintenance Access
Design the layout to provide sufficient space for maintenance activities around each machine, especially for high-maintenance sections like the glass cleaning and pressing sections.
4. Utility Planning
Power Requirements
Plan for adequate electrical supply points along the production line, ensuring that each section has reliable access to the power needed for its operation. Consider energy-efficient solutions to reduce operational costs.
Ventilation Systems
Install effective ventilation systems, particularly in areas where glass coatings and gas fillings are applied. Proper ventilation is crucial to maintain air quality and control the dispersal of any hazardous substances.

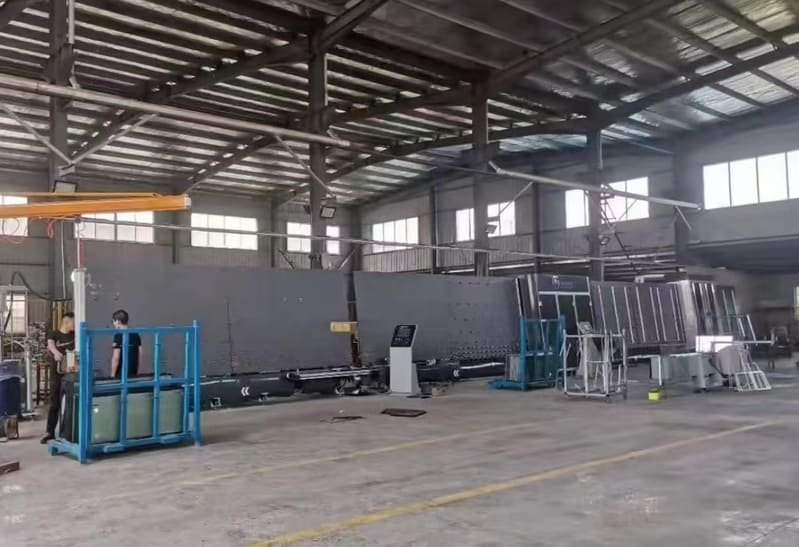

5. Material Handling and Storage
Raw Material Storage
Locate raw material storage close to the loading section to minimize the distance glass panes need to be transported to the starting point of the production line.
Finished Goods Storage
Plan a dedicated area for storing finished products that is easily accessible from the unloading section but sufficiently isolated to prevent accidental damage.
6. Technology Integration
Monitoring Systems
Implement centralized monitoring systems that can track production metrics and machine status from a control room. This helps in quick decision-making and immediate troubleshooting.
Automation of Material Transport
Consider automated guided vehicles (AGVs) or conveyor systems for moving materials between sections, reducing labor costs and potential handling errors.
What is Your Production Time Cycle for Automatic Insulating Glass Production Line?
| Phase | Description | Duration |
|---|---|---|
| Order Confirmation | Order details are finalized and confirmed with the customer. | 1-2 days |
| Design and Customization | Engineering team designs and customizes the production line as per the specific requirements detailed in the order. | 5-10 days |
| Procurement | Necessary materials and components are procured based on the design specifications. | 10-15 days |
| Manufacturing | Assembly and construction of the production line begin once all materials are available. | 20-30 days |
| Quality Assurance | Comprehensive testing of the assembled production line to ensure it meets all specifications and quality standards. | 5-7 days |
| Packing and Shipping | The production line is disassembled (if needed), securely packed, and prepared for shipment. | 3-5 days |
| Delivery | The production line is shipped to the customer's location. The time depends on the geographical distance and mode of transport. | Variable |
| Installation and Commissioning | On-site installation and commissioning are conducted by a specialized team, including necessary training for the customer’s operators. | 7-14 days |
| Final Handover | The production line is formally handed over to the customer after final acceptance testing. | 1-2 days |
- Additional Notes
Customer Collaboration
Throughout the production cycle, we maintain an open line of communication with our customers. Regular updates and checkpoints ensure that any modifications or special requests are addressed promptly, ensuring the final product aligns perfectly with customer expectations.
Adaptability
The provided timeline is flexible and may be adjusted based on various factors such as complexity of customization, availability of materials, and customer urgency. We prioritize transparency and will communicate any changes in the schedule as early as possible.
Quality Assurance
Each production line undergoes rigorous testing to meet our high-quality standards. This includes functional testing of all components and full operational simulations to ensure performance reliability before shipment.
Detailed Production Schedule for Reference
This detailed schedule should be integrated into daily production planning to align team efforts and machine availability. Regular reviews and adjustments may be necessary to optimize the schedule based on real-world observations and data analysis.
| Stage | Process Description | Duration | Key Tasks | Output |
|---|---|---|---|---|
| 1. Loading Section | Initial placement of glass panes onto the production line | 10 minutes | - Load glass panes - Check initial glass integrity | Glass panes ready for cleaning |
| 2. Glass Cleaning Section | Cleaning and drying of glass panes | 15 minutes | - Clean glass with brushes - Dry glass thoroughly | Clean and dry glass panes |
| 3. Cleaning and Discharging Section | Final inspection and buffering of glass panes | 5 minutes | - Inspect glass for cleanliness - Buffer storage | Inspected and buffered glass panes |
| 4. Check Aluminum Frame Section | Positioning and aligning aluminum frames on glass panes | 10 minutes | - Position aluminum frames - Align frames accurately | Glass panes with frames ready for pressing |
| 5. Transition Section | Transfer of glass panes to pressing section | 5 minutes | - Transfer glass securely - Prepare setup for pressing | Glass panes ready for plate pressing |
| 6. Plate Pressing Section | Pressing and sealing of glass panes | 20 minutes | - Press and seal panes - Argon gas filling | Sealed insulating glass units |
| 7. Unloading Section | Final unloading and quality check of IGUs | 10 minutes | - Unload finished IGUs - Perform final quality checks | Finished IGUs ready for dispatch |
Will Production Be Affected by Peak Seasons or Holidays?
| Holiday | Holiday Duration | Dates | Potential Production Impact |
|---|---|---|---|
| New Year's Day | 1-3 days | January 1st | Minimal impact, quick production recovery |
| Chinese New Year | Typically 1.5 months | January/February - Lunar calendar, normal recovery by March | Most significant impact, factories usually shut down for about 1.5 months, full recovery by March |
| Qingming Festival | 3 days | April 4th/5th | Short impact, quick recovery after holiday |
| Labor Day | 3 days | May 1st-3rd | Short delay if high order volume, 3-day break |
| Dragon Boat Festival | 3 days | June - Lunar calendar | Short impact, minimal delay expected |
| Mid-Autumn Festival | 3 days | September/October - Lunar calendar | Minimal impact, short disruption |
| National Day | 7 days | October 1st-7th | Moderate impact, 1 week delay possible |
Professional Guidelines for Packaging and Storing Sea Freight

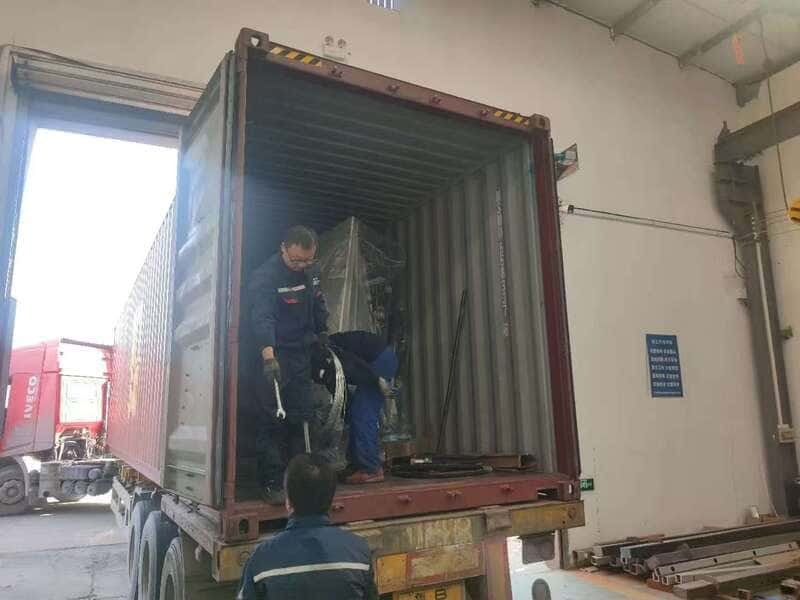

1. Assessment and Planning
Inventory Check: Begin with a thorough inventory of all parts and components of the production line to ensure everything is accounted for before packaging.
Measurement and Weight Verification: Measure and weigh each component to select the appropriate packaging materials and container sizes.

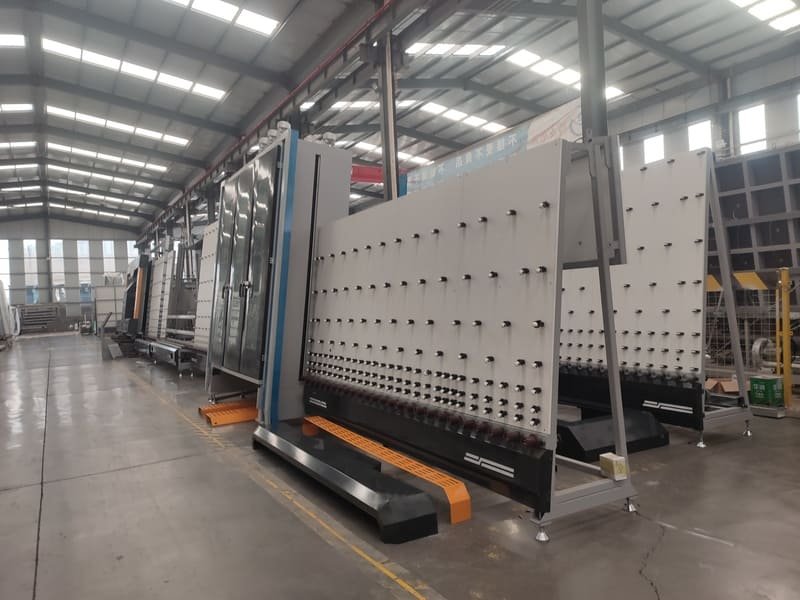

2. Disassembly and Preparation
Disassembly: Carefully disassemble larger components of the production line if necessary to fit into containers and to prevent damage during transportation.
Cleaning and Protection: Clean all parts to remove any debris or residues that could cause damage or corrosion during transit. Apply protective coatings or oils as required to prevent rust and corrosion, especially for metal parts.

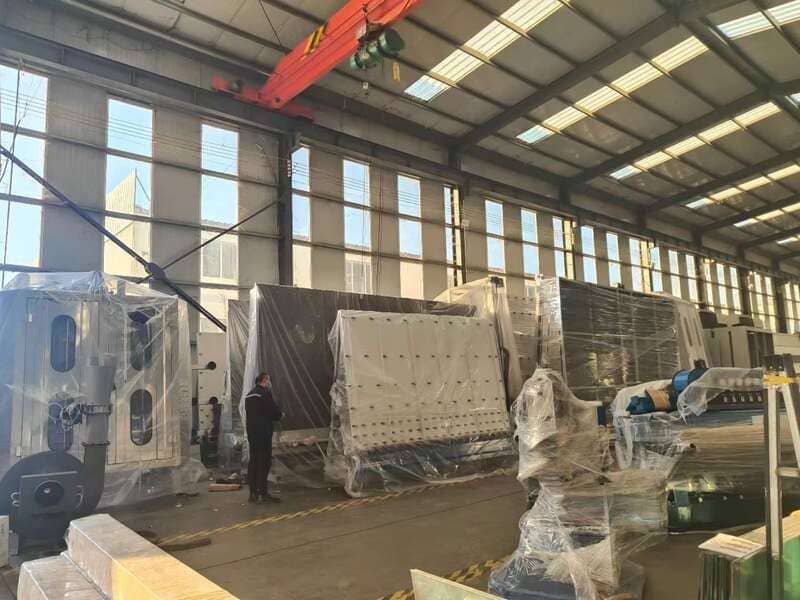

3. Protective Packaging Materials
Cushioning and Padding: Use high-quality, shock-absorbing materials such as bubble wrap, foam pads, or inflatable airbags to cushion each component. Ensure that every item is snugly fit within its packaging to avoid movement that can lead to abrasion or impact damage.
Moisture Control: Include desiccants inside the packaging to absorb moisture and prevent condensation, which is especially important for sea freight due to the high humidity environment.

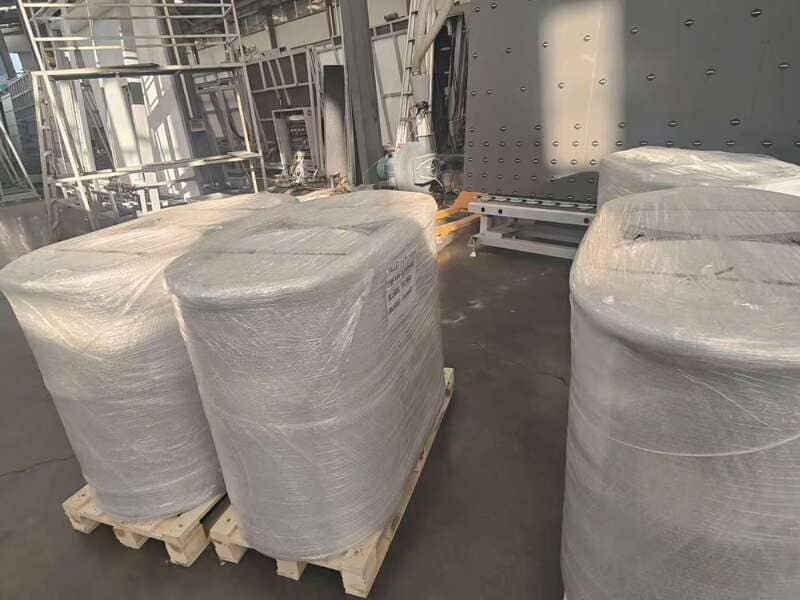

4. Crating and Boxing
Sturdy Containers: Use strong, durable crates and boxes that are capable of withstanding the rigors of sea transit. Wooden crates are commonly used for heavy machinery due to their strength and shock-absorption capabilities.
Secure Sealing: Seal all crates and boxes securely with heavy-duty strapping, waterproof sealing tape, or metal bands to prevent opening during handling and transit.

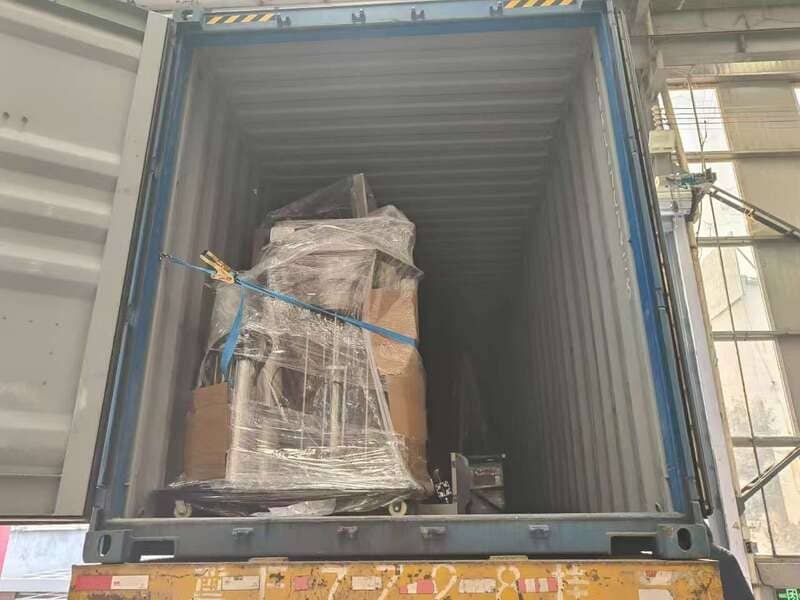

5. Container Loading
Container Type: Choose the right type of container based on the size and vulnerability of the equipment. Options include standard containers, open-top containers for tall machinery, and flat racks for oversized loads.
Weight Distribution: Ensure that the weight is evenly distributed throughout the container to prevent shifting. Securely anchor heavy items to the container’s tie points to minimize movement.

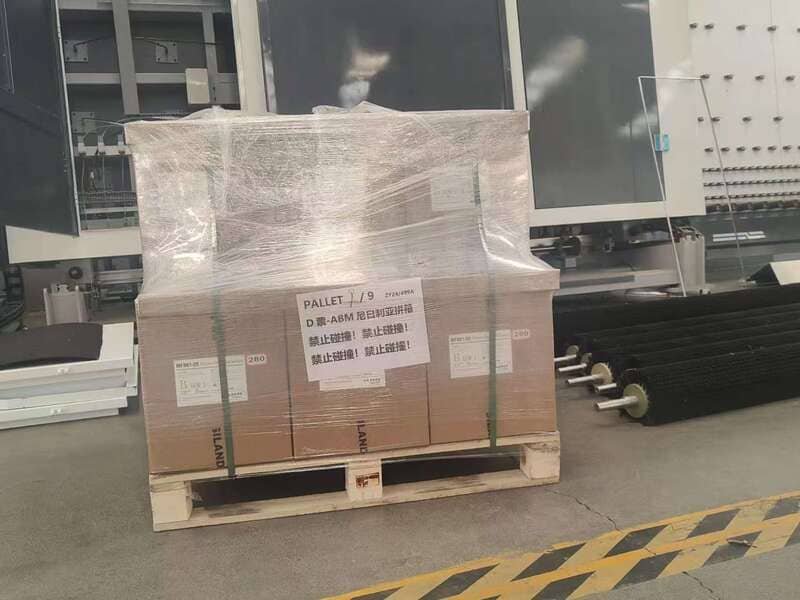

6. Labeling and Documentation
Clear Labeling: Label each package clearly with handling instructions such as "Fragile", "This Side Up", or "Keep Dry" to inform handlers of the care needed.
Documentation: Prepare detailed packing lists, bills of lading, and other necessary shipping documents that describe the contents and handling instructions to ensure proper treatment during shipping and customs clearance.
What Shipping Methods are Available?
| Transport Method | Description | Advantages | Recommendation |
|---|---|---|---|

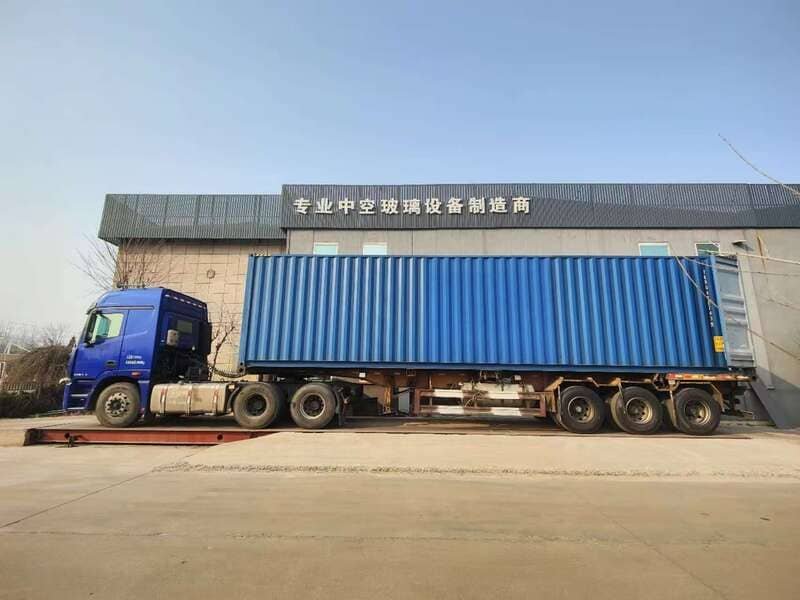

| Container Shipping (Sea Freight) | Transporting goods in standard-sized shipping containers via cargo ships. | Cost-effective for large volumes, secure, extensive global coverage. | Recommended for international shipments to countries with accessible seaports. |
| Truck Transportation | Transporting goods by truck, providing flexible, door-to-door service. | Convenient for direct deliveries, can access remote areas, ideal for short distances. | Best suited for deliveries within Central Asia or inland European countries. |
| Rail Transportation | Transporting goods using railroad systems across long distances. | Economical for heavy loads, environmentally friendly, reliable, and punctual. | Excellent for long-distance deliveries in regions with well-developed rail infrastructure, like Europe and Asia. |
What Are the Payment Terms and Conditions?
To streamline the purchasing process and maintain financial clarity between our company and our customers, we have established straightforward and secure payment terms for the purchase of our Automatic Insulating Glass Crossbeam Inflation Production Line.
Deposit and Balance Payments
- Upon signing the contract, customers are required to pay a 30% deposit of the total purchase price. This deposit is necessary to initiate the order and begin the production or customization of the machinery.
- The remaining 70% balance is due before shipment of the equipment. This ensures that the majority of the payment is secured prior to the dispatch of the fully assembled production line.
Telegraphic Transfer (TT)
- We accept payments via Telegraphic Transfer (TT), a reliable and commonly used method for international transactions.
- This method allows for quick and secure transfer of funds directly between banks, ensuring both parties have documented proof of transaction, which is essential for international trade and financial security.
Do You Have Any Training Plans for Clients?
To ensure that our customers achieve the best performance from their Automatic Insulating Glass Crossbeam Inflation Production Line and maintain operational efficiency, we offer a comprehensive suite of training programs. These training sessions are designed to provide operators and technical staff with the knowledge and skills needed to operate, maintain, and troubleshoot the system effectively.
| Training Module | Purpose | Content | Method |
|---|---|---|---|
| Operator Training | Equip operators with skills to run the line efficiently. | - Component overviews - Machine operation - Material handling | Hands-on training on-site or at our facility, with operational manuals and guides. |
| Maintenance Training | Enable technicians to perform routine maintenance. | - Maintenance procedures - Part replacement - Diagnostic techniques | Interactive sessions with theoretical and practical demonstrations, including manuals. |
| Advanced Troubleshooting | Prepare staff to handle complex problems. | - Advanced diagnostics - Troubleshooting electrical, mechanical, and software issues - Emergency procedures | Scenario-based training with real-life problem solving on production line equipment. |
| Software and Automation Control | Manage and optimize production line software systems. | - Control system architecture - Software interface and settings - Data management | Classroom-style training with simulation software and hands-on practice on actual machinery. |
What does your after-sales service include?
24/7 Technical Support
- Utilize various communication platforms such as phone, email, and live chat to ensure accessibility for all international customers.

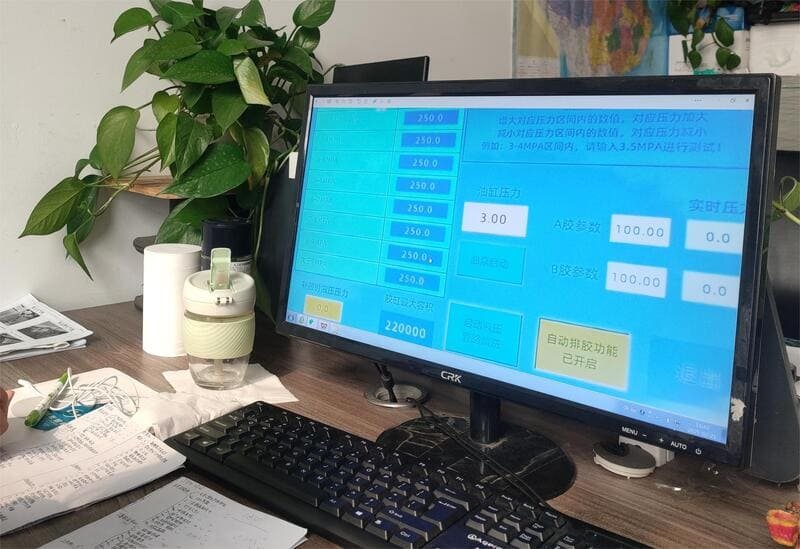

Remote Diagnostics and Troubleshooting
- Provide virtual troubleshooting through secure connections, allowing technicians to guide local operators through complex procedures or software issues.
Spare Parts Logistics
- Offer critical spare parts kits that can be kept on-site at customer facilities for immediate replacement to minimize downtime.
Online Training and Documentation
- Update training content regularly to include new operational techniques, safety protocols, and troubleshooting tips.
Scheduled Maintenance Services
- Offer video-assisted maintenance sessions where on-site visits are impractical, guiding local teams through detailed maintenance procedures.
Warranty and Extended Service Agreements
- Provide options for extended service agreements that offer extended warranties, additional maintenance visits, and parts coverage, tailored for the specific needs of overseas operations.
FAQs
Our production line is designed to accommodate a wide range of sizes to meet various manufacturing needs. The maximum glass size that can be processed is 3200 mm x 6000 mm. We ensure that our machinery fits within standard industrial space requirements, and specific dimensions can be adjusted according to customer needs.
The production line is versatile and capable of handling glass thicknesses from 3 mm up to 15 mm. It can process various types of coatings, including low-E and reflective coatings, without compromising the integrity of the coatings or the glass itself.
Yes, our production line is equipped to handle both argon and krypton gas filling. This flexibility allows for enhanced thermal performance customization of the insulating glass units, catering to specific energy efficiency requirements.
The energy consumption of our production line is optimized to be as efficient as possible. On average, the line consumes approximately 0.3 kWh per square meter of glass processed, depending on the specific configurations and operations running. We are committed to improving energy efficiency, reducing operational costs for our customers.
The production line is controlled via a state-of-the-art integrated control system that includes intuitive software. This system provides precise control over every aspect of the production process, from glass handling to gas filling and sealing. The software supports remote diagnostics and can be updated as needed to incorporate new features and improvements.
Absolutely, our production line is designed with integration in mind. It can be seamlessly incorporated into existing systems in your facility, with the ability to connect with other equipment and software through standard industrial interfaces. Our technical team will work closely with you to ensure a smooth integration, providing support and modifications as required.
We offer a range of customization options to ensure our production line meets the specific needs of each customer. These options include adjustable glass size capacities, choice of gas filling systems (argon, krypton), various glass loading and unloading mechanisms, and different levels of automation control. Additionally, we can customize the software interface to integrate with your existing systems, enhancing user experience and functionality.
Absolutely. Our production line is designed with future scalability in mind. It can be upgraded to incorporate new technologies as they become available. This includes software updates, hardware upgrades like enhanced sensors or faster processors, and new modules that can be integrated to expand capabilities or improve efficiency.
Yes, there are various modules and features that can be added post-installation to enhance functionality or adapt to changing production requirements. This includes additional glass processing modules, advanced quality inspection systems, and enhanced automation features. Our team is available to assess your ongoing needs and recommend the best options for upgrading your system.
For international clients, our standard payment terms involve a 30% deposit upon signing the contract, with the remaining 70% due prior to shipment. These terms are designed to provide security for both parties while ensuring smooth delivery and installation of the equipment. We accept payments through Telegraphic Transfer (TT), and detailed payment instructions are provided during the contracting phase.
The typical lead time from order confirmation to delivery for international shipments ranges from 60 to 90 days, depending on the customization requirements and the final destination. We make every effort to streamline production and logistics to meet these timelines, keeping our clients informed at every stage of the process.
We handle all logistics and shipping arrangements through our trusted freight partners to ensure safe and timely delivery. Shipping costs are usually not included in the price of the production line and are quoted separately based on the destination, shipment size, and transportation mode to provide transparent and fair pricing.
The installation requirements for our production line include adequate space based on the dimensions of the equipment, access to required utilities (such as power and compressed air), and a stable and level floor.
Our after-sales support includes 24/7 technical support, regular maintenance checks, remote troubleshooting, software updates, and prompt spare parts delivery. Our goal is to ensure that any issues are resolved quickly and efficiently, minimizing any potential downtime.
We maintain a well-stocked inventory of all critical spare parts at various strategic locations worldwide to ensure rapid availability. In urgent situations, we expedite shipping to deliver these parts as quickly as possible, typically within 24 to 48 hours, depending on the location.
The typical production rates of our Automatic Insulating Glass Crossbeam Inflation Production Line can vary depending on the specific model and configuration, as well as the types of glass being processed. Generally, the line is capable of producing between 800 to 1200 square meters of insulating glass units per shift (based on an 8-hour shift). This rate is highly efficient in the industry, ensuring high throughput for businesses looking to scale up their production capacity.
Our production line is equipped with advanced sensors and software that continuously monitor the operation for any deviations or errors in real-time. The system is designed to:
- Detect Errors Automatically: Sensors can identify issues such as misalignments, pressure inconsistencies, or gas filling irregularities.
- Immediate Alerts: Upon detecting an error, the system automatically alerts the operators through the control panel, providing specific error codes and descriptions to assist in quick identification.
- Error Management: The software includes troubleshooting guides and automated corrective actions (where applicable) to assist operators in resolving issues quickly. For more complex problems, our remote support team can diagnose and provide solutions promptly to minimize downtime.
- Preventive Maintenance: The system also logs all operational data, which is analyzed to predict potential wear and tear on components, allowing for proactive maintenance before failures occur.
