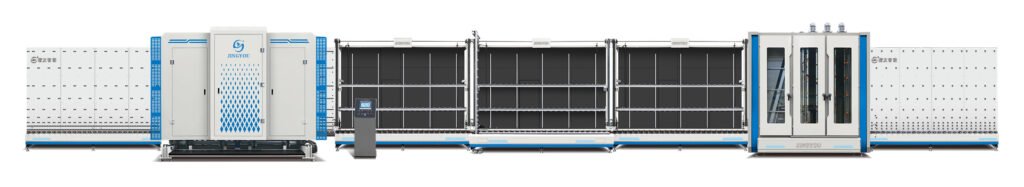

Automatic Insulating Glass Crossbeam Inflation Production Line

What Is It?

An Automatic Insulating Glass Crossbeam Inflation Production Line is a sophisticated system designed for the assembly and sealing of insulating glass units (IGUs), which often includes a crossbeam for additional structural support and insulation properties.

Table of Content

Introducing all aspects of An Automatic Insulating Glass Crossbeam Inflation Production Line can be challenging, so we have gathered extensive information on this page for you to explore. To help you quickly locate the details you need, we have provided a content directory that allows you to jump directly to the relevant sections with a click.

To save your time, we have also prepared a PDF version containing all the contents of this page, only leave your name &email, then you will get the download link immediately.

Typical Processes

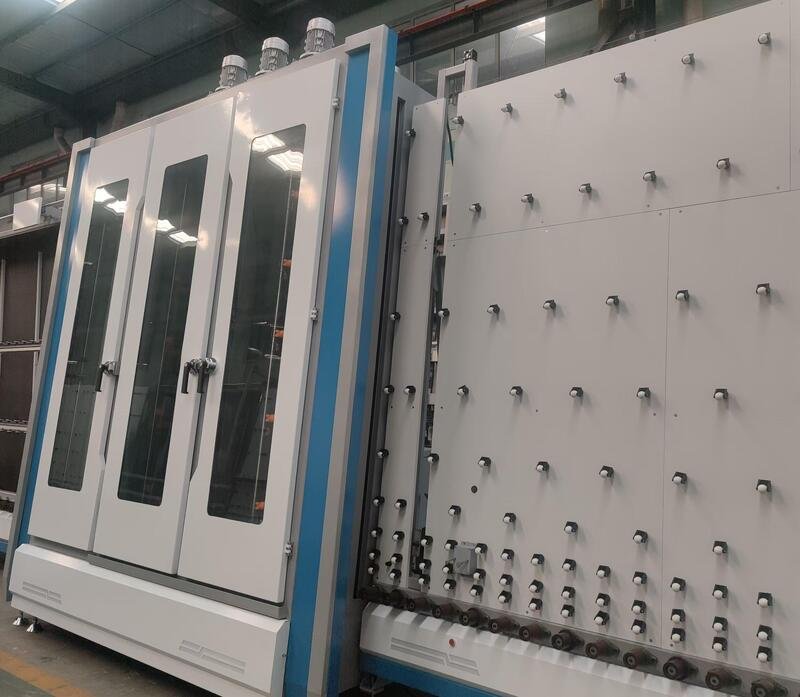

1. Loading Section

The loading section is the initial stage of the Automatic Insulating Glass Crossbeam Inflation Production Line. Here, glass panes are carefully loaded onto the production line. This section is equipped with advanced handling equipment to ensure that the glass is positioned accurately and safely onto the conveyor, setting the stage for the subsequent cleaning and processing steps. This phase is critical as it determines the throughput and efficiency of the entire production line, ensuring a smooth transition into the glass cleaning process.

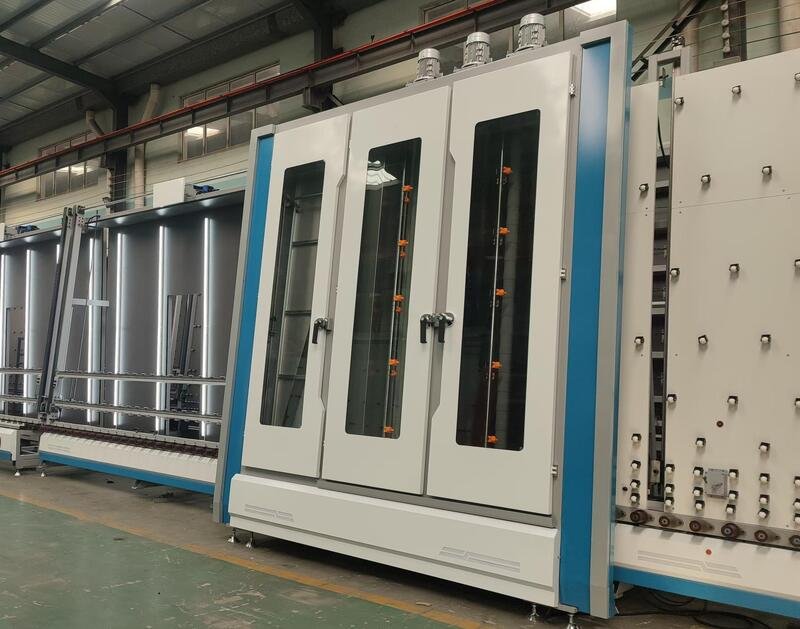

2. Glass Cleaning Section

This section is vital for preparing the glass panes for assembly by ensuring they are pristine and free of contaminants. In the glass cleaning section, each pane undergoes a thorough washing and drying process using specialized equipment. High-pressure water jets, brushes, and drying systems are employed to remove all dust, dirt, and residues, which is crucial for the adhesion of sealants and the overall quality of the insulating glass units. Proper cleaning prevents defects in the final product and ensures optimal visibility and performance of the IGUs.

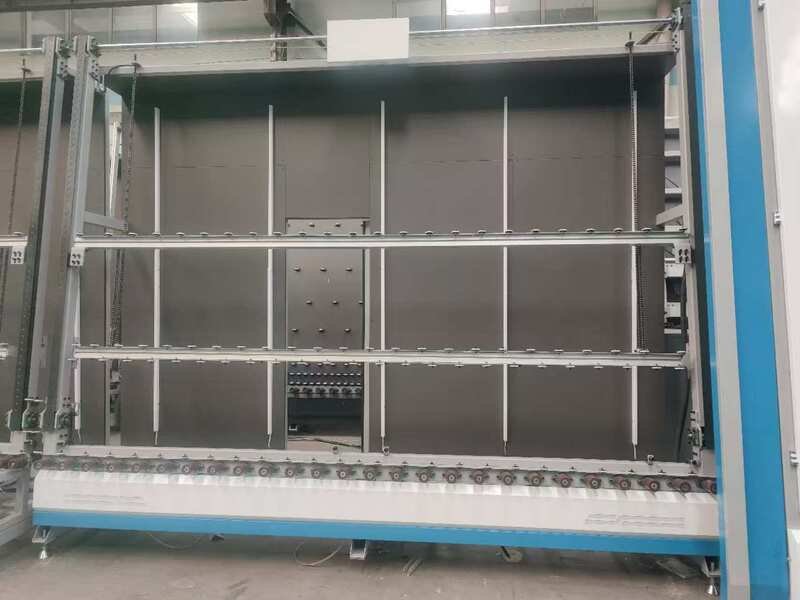

3. Cleaning and Discharging Section

Following the glass cleaning section, the glass moves into the cleaning and discharging section. Here, each pane undergoes a final inspection to ensure that all cleaning standards are met with no residual contaminants remaining. This section serves a dual purpose: it not only inspects the glass for cleanliness but also acts as a holding area where glass is pre-stored, readying it for seamless transition to the next phase of the production process. This organization significantly enhances workflow efficiency, ensuring that the glass is immediately available for precise positioning and assembly in the subsequent sections.

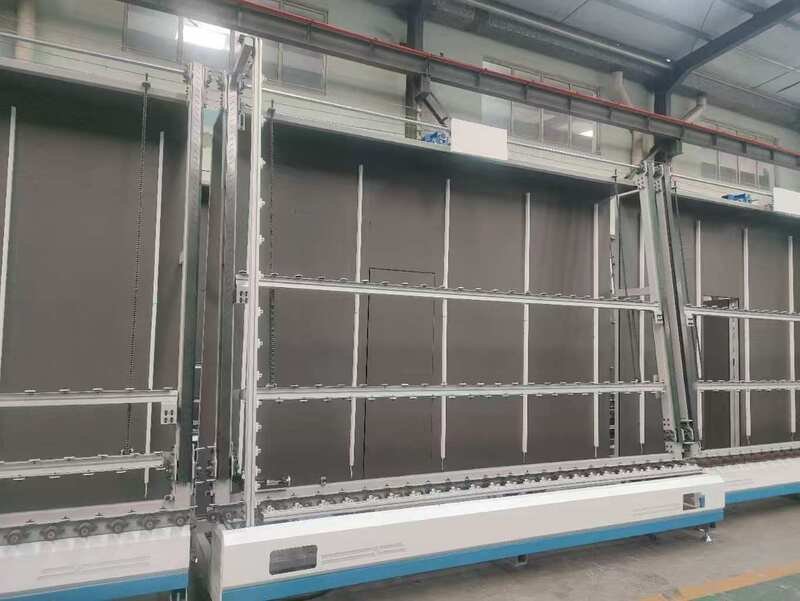

4. Check the Aluminum Frame Section

In the Check the Aluminum Frame section, crucial tasks of positioning both the glass and the aluminum frames are performed. This section ensures the precise alignment and placement of aluminum spacers onto the cleaned and inspected glass panes. The accurate positioning is critical for the structural integrity and performance of the insulating glass units, as it sets the stage for the next crucial steps of plate pressing and gluing. The meticulous placement of the aluminum frames prepares the assembly for a seamless transition into these subsequent processes, ensuring that the final product meets all quality and durability standards.

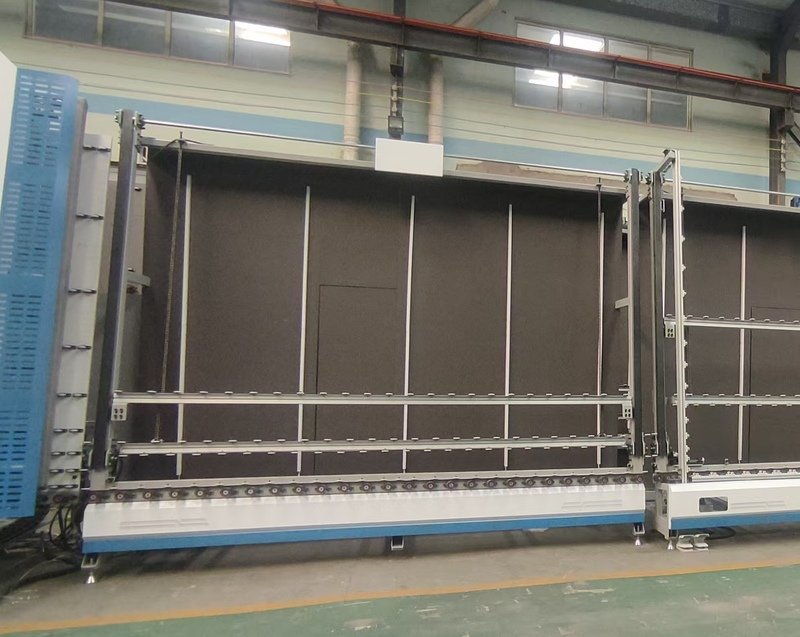

5. Transition Section

The Transition Section serves as a dynamic intermediary in the production line, designed to optimize the flow of glass panes between stages. Its primary function is to facilitate the rapid and controlled movement of glass from one section to the next. This section ensures that the front glass is swiftly moved out and securely stopped to make room for the subsequent glass pane. By effectively managing the speed and timing of the glass movement, this section prevents collisions between panes and maintains a smooth and continuous workflow.

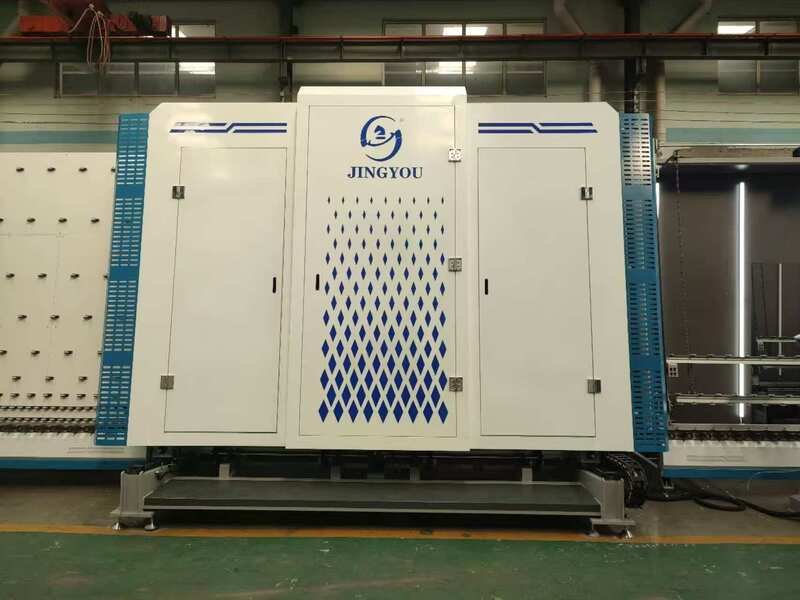

6. Plate Pressing Section

The Plate Pressing Section is a critical component of the Automatic Insulating Glass Crossbeam Inflation Production Line, where the assembly of the insulating glass units is solidified. In this section, two or more glass panes, along with aluminum frame spacers, are meticulously positioned and adjusted. Once aligned, the unit undergoes argon gas filling to enhance its thermal properties. Following the gas fill, the assembly is pressed together under controlled conditions.

This process involves the precise application of pressure to ensure the glass panes and spacers adhere firmly, creating a sealed, insulating glass structure that meets specific thickness and size requirements. This section is essential for enhancing the strength, stability, and insulative qualities of the finished glass units, ensuring they are ready for the final stages of production and subsequent installation.

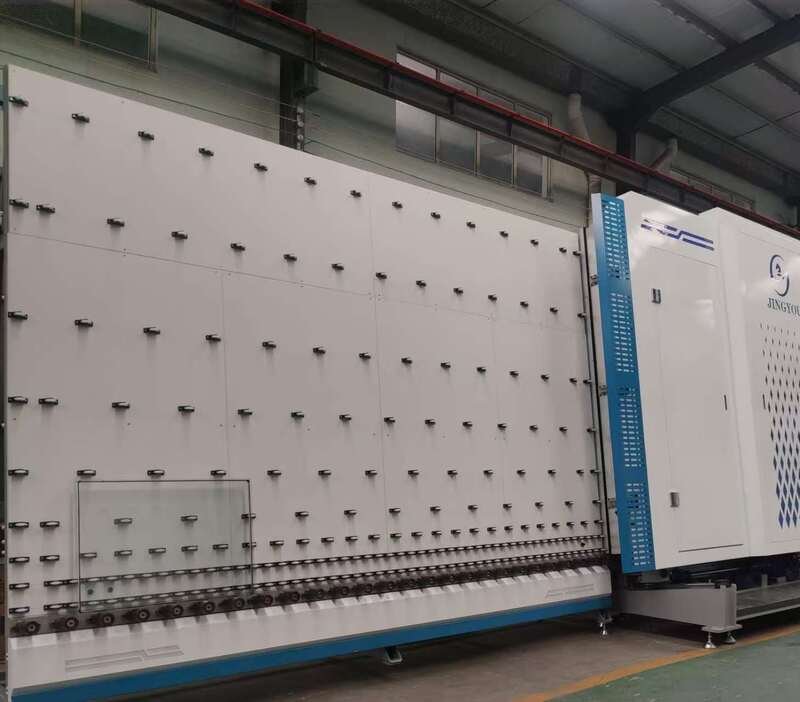

7. Unloading Section

The Unloading Section marks the final stage of the Automatic Insulating Glass Crossbeam Inflation Production Line before the units proceed to additional processing such as gluing. After the insulating glass units have been pressed and the integrity of their seals verified, they are carefully moved into this section. Here, the completed units are held temporarily, ensuring they are correctly aligned and stable before transitioning to the next phase of production. This section is crucial for orchestrating a smooth flow from the pressing stage to the gluing or final assembly processes, helping to maintain production efficiency and reduce the risk of damage to the finished glass units as they are prepared for either storage, shipping, or further processing.

Primary Feature

Feature	Description	Benefit
Automation Integration	Fully automated process from glass loading to unloading, including crossbeam placement and gas filling.	Minimizes human error, enhances production speed, and ensures consistent quality of the IGUs.
Advanced Glass Handling	Sophisticated systems that safely manipulate glass panes through various stages.	Reduces the risk of breakage and scratches, maintaining high product integrity.
High Precision Gas Filling	Automated gas filling stations with precise control over gas concentrations.	Improves thermal and acoustic insulation properties, ensuring energy efficiency compliance.
Crossbeam Integration	Automated insertion of crossbeams with optional gas inflation within the framework.	Enhances structural strength for large-scale applications and optimizes thermal performance.
Dual Sealing Technology	Application of both primary and secondary sealants via automated systems.	Ensures airtight and watertight seals, prolonging IGU lifespan and preventing condensation or gas leakage.
Quality Control Systems	Integrated inspection stations using advanced vision systems and sensors.	Allows real-time quality assurance and reduces wastage by detecting defects early.
Customizable Production Parameters	Flexible control systems for easy adjustment to various sizes and specifications.	Enables the line to meet diverse customer requirements with minimal downtime for reconfiguration.
Energy Efficient Design	Energy-saving components and operational modes to minimize consumption during production.	Reduces operational costs and supports environmental sustainability efforts.
User-Friendly Interface	Touchscreen interfaces and intuitive control panels for easy operation and monitoring.	Reduces training time for operators and enhances the ability to quickly adjust settings.
Safety Features	Comprehensive safety mechanisms, including emergency stops, shields, and sensors.	Ensures a safe working environment and compliance with international safety standards.

Brand Configuration Sheet

NO	Name	Brand	NO	Name	Brand	NO	Name	Brand
1	Plate pressure motor	HCFA/DELTA	12	Frequency conversion motor	TAIWAN DYG	23	Cylinder Series	AirTac
2	Plate press servo drive	HCFA/DELTA	13	Switching Power Supply	TAIDA	24	Water Pump	DALEI
3	X-axis servo motor	HCFA/DELTA	14	Empty well series	France Schneider	25	Plate pressure fan	Alkane
4	Y-axis servo drive	HCFA/DELTA	15	AC contactor series	France Schneider	26	brush	Haoernuo Rubber Roller Brush Manufacturing Co., Ltd.
5	Y-axis servo motor	HCFA/DELTA	16	Ultrasonic photoelectric switch	America Bonner	27	Transmission wheel	Jiayuan Rubber& Plastic
6	Y-axis servo drive	HCFA/DELTA	17	Photoelectric switch	Korea Alto Nix	28	Bearings	Harbin Group
7	Partition servo motor	HCFA/DELTA	18	Intermediate relay series	Japan Omron	29	guide	Taiwan Hiwin
8	Isolation servo drive	HCFA/DELTA	19	Solenoid valve series	AirTac	30	gear	Star
9	PLC	HCFA/DELTA	20	Electronic data pressure gauge	AirTac	31	Doublet	AirTac
10	Frequency Converter	HCFA/DELTA	21	Solenoid valve series	AirTac	32	High pressure blower	Shanghai Hanshuo
11	Display	HCFA/DELTA	22	Limit switch	Mingde

How does it improve upon traditional methods of manufacturing IGUs?

Aspect	Traditional Method	Improved Method with Automatic Production Line
Automation and Precision	Partial automation; significant human intervention required.	Fully automated processes ensure precision in every step, minimizing human error and maximizing consistency.
Speed and Efficiency	Slower production rates due to manual steps and bottlenecks.	Synchronized operations allow simultaneous processes, increasing throughput and efficiency.
Gas Filling Accuracy	Manual or semi-automated, leading to variable gas concentrations.	Automated gas filling with precise control, ensuring consistent and optimal gas concentrations for better insulation.
Energy Efficiency	Older equipment may not focus on energy conservation.	Energy-efficient designs with modern technology minimize power consumption, reducing operational costs.
Crossbeam Integration	Manual process prone to errors and inconsistencies.	Automated integration of crossbeams enhances structural support and thermal insulation seamlessly within the production process.
Quality Control	Manual inspections can miss defects, leading to variability.	Advanced vision systems and automated inspections ensure each IGU meets stringent quality standards throughout the production process.
Labor and Training Costs	High due to the need for skilled operators for manual tasks.	Reduced labor costs and lower training requirements, as the automated line handles routine tasks, allowing personnel to focus on quality control and maintenance.
Scalability and Flexibility	Difficult to scale production or adapt to new specifications.	Modular systems that are easy to adjust, allowing rapid scaling and flexibility to produce various sizes and specifications of IGUs to meet market demands.

Glass Size Capacities

Glass Size Type	Dimensions (mm)	Typical Use
Smallest Glass Size	200 x 450	Ideal for small windows, specialized architectural features, and bespoke applications in residential settings.
Regular Glass Size	1000 x 2000	Commonly used in standard residential and commercial windows, offering a balance of manageability and utility.
Largest Glass Size	3210 x 6000	Suitable for large commercial and industrial installations like façades, large partition walls, and expansive windows.

Glass Thickness Compatibility

Range of Thicknesses Handled

Minimum Thickness

Modern automatic IGU production lines can handle glass as thin as 3 mm. This capability is vital for applications requiring lightweight or decorative glass that does not bear significant loads.

Maximum Thickness

These production lines are capable of handling glass up to 19 mm thick, which is used in applications requiring enhanced thermal and acoustic insulation, as well as increased security and safety properties.

Importance of Thickness Compatibility

Versatility in Production

The ability to handle a broad range of thicknesses allows manufacturers to cater to various sectors including residential, commercial, and specialized industrial applications.

Compliance with Safety and Energy Standards

Thicker glass is often required to meet specific safety certifications and energy efficiency standards. Ensuring that the production line can process such thicknesses is crucial for compliance and marketability.

Impact on Production Efficiency

Production Speed Adjustments

Different glass thicknesses may require adjustments in machine settings such as speed, pressure, and temperature. A production line that can automatically adjust to these variations maintains high efficiency and product quality.

Tooling and Equipment Wear

Handling a wide range of thicknesses can impact the wear and maintenance requirements of the machinery. Equipment designed to accommodate this variability typically features enhanced durability and advanced engineering.

Technical Specifications for Optimal Performance

Precision in Handling

Accuracy in handling different thicknesses ensures that the glass does not suffer from stress fractures or deformities during processing.

Sealant and Spacer Compatibility

The production line must be capable of applying appropriate spacer widths and sealant volumes, which are crucial for the effective sealing of IGUs with varied thicknesses.

Customization and Upgrades

Modular Upgrades

Some production lines offer modular upgrades that can enhance their capability to handle unusual thicknesses or introduce new features that improve handling precision for very thin or very thick glass.

Software Updates

Continuous software updates can optimize processing parameters for new glass thicknesses as they become more prevalent in industry applications.

What is Production Output Rate?

Production output rate refers to the number of insulating glass units (IGUs) that a production line can manufacture within a given period, typically expressed as units per hour.

Importance?

The output rate is crucial for planning production schedules, estimating delivery times, and calculating potential revenue. It also affects labor costs and energy consumption per unit.

Typical Output Rates

For a modern automatic production line, the standard output rate can range from 800 to 1,200 IGUs per 8-hour shift. This rate assumes a mix of standard sizes and configurations.

Factors Affecting Output

The rate can vary significantly based on factors such as glass size, the complexity of IGU configurations (e.g., number of panes, types of coatings, gas fillings), and the specific model of the production line.

Enhancements Affecting Output Rate

Automation Level

Higher levels of automation typically increase output rates by reducing manual handling time and minimizing errors and reworks.

Technology Integration

Advanced technologies like robotic arms, precise conveyor systems, and real-time monitoring software can streamline operations and boost production speed.

Gas Filling Precision and Options

Gas filling precision refers to the ability of the production line to accurately and consistently inject specified gases into the IGU to the exact required levels.

Importance?

High precision in gas filling is essential for ensuring the IGUs meet specified thermal and sound insulation standards. Consistency in gas concentration within the IGUs leads to uniform quality and performance.

Common Gases Used

Argon

The most commonly used gas due to its excellent thermal performance and cost-effectiveness.

Krypton

Used for higher performance in triple-glazed or very thin IGUs, though more expensive than argon.

Xenon

Although less common due to its higher cost, xenon offers superior insulation properties and is used in specialized high-end applications.

Technological Features Affecting Gas Filling Precision

– Automated Control Systems: Modern production lines are equipped with automated systems that control the volume and rate of gas injection, ensuring precision and repeatability.
– Real-time Monitoring: Sensors and monitoring systems provide real-time feedback on gas concentration levels and adjust the filling process dynamically to maintain accuracy.
– Sealing Efficiency: Advanced sealing technologies ensure that once the gas is injected, it remains contained within the unit without leaks, which is critical for maintaining long-term performance.

Options for Gas Filling

– Single vs. Dual Fill: Some production lines offer options for single or dual gas fills, allowing for different gas types in different panes of a multi-pane IGU.

– Custom Gas Mixtures: Depending on the customer’s requirements for thermal or acoustic insulation, custom mixtures of gases can be used to enhance IGU performance.

Automation Level in IGU Production Lines

Scope and Extent of Automation

– Full Automation: The highest level of automation includes all aspects from glass loading, washing, spacer placement, gas filling, sealing, to unloading and packaging. This minimizes manual intervention and reduces the risk of human error.
– Semi-Automation: In some older or less expensive models, certain steps like glass loading or unloading may require manual handling, or gas filling and sealing might need operator supervision.

Impact on Production Efficiency

– Speed and Throughput: Fully automated lines typically produce IGUs faster because each step is optimized and transitions smoothly into the next. This increases overall throughput and is ideal for high-volume production environments.
– Consistency and Reproducibility: Automation ensures that every unit is produced with consistent quality, reducing variability that can occur with manual processes.

Cost Implications

– Initial Investment: Fully automated systems require a higher initial capital investment. However, the long-term savings through reduced labor costs and increased production rates often justify this expenditure.
– Operating Costs: Although automated lines are more energy and resource-efficient, they might incur higher maintenance and repair costs compared to semi-automated systems.

Flexibility and Adaptability

– Product Variability: Advanced automated systems typically offer better flexibility to handle different sizes and types of glass, as well as various IGU configurations, without significant downtime for setup changes.
– Scalability: Automation facilitates easier scalability. As demand increases, production can be ramped up more readily without the proportional increase in labor that would be required with less automated systems.

Labor and Skill Requirements

– Reduced Labor Force: Fully automated lines reduce the number of operators needed, which can significantly cut labor costs.
– Higher Skill Levels Required: The operators that are needed tend to require higher skill levels to manage and troubleshoot the automated machinery, potentially increasing the training costs or necessitating higher wages.

Typical Footprint Dimensions

Understanding the exact footprint is crucial for facility layout planning to ensure there is adequate space for not only the production line but also for associated activities such as material storage, maintenance access, and operator movement.

Production Line Size

While the specific dimensions can vary significantly depending on the configuration and capabilities of the production line, a typical modern line might range from 20 meters to 50 meters in length and 10 meters to 15 meters in width. This includes space for the loader, washer, assembly section, gas filling station, sealer, and unloader.

Height Considerations

The height can also be an important factor, especially for lines that include vertical storage or automated glass stacking systems, generally requiring heights of at least 3 to 4 meters.

Sealant Types in IGU Production

Sealant Type	Primary or Secondary	Adhesion	Moisture Resistance	Flexibility	Thermal Resistance	UV Resistance	Typical Applications
Polyisobutylene (PIB)	Primary	Good	Excellent	Moderate	Good	Poor	Used as the primary barrier against moisture and gas ingress in IGUs
Silicone	Secondary	Excellent	Excellent	Excellent	Excellent	Excellent	Ideal for structural glazing and sealing in high-movement areas, effective in diverse climates
Polysulfide	Secondary	Excellent	Excellent	Excellent	Good	Good	Suitable for colder climates with high thermal cycling, used in both residential and commercial IGUs
Polyurethane	Secondary	Excellent	Good	Good	Excellent	Moderate	Used in structural glazing where high adhesive strength and mechanical properties are required

Selection Factors

Thermal and Acoustic Insulation

The effectiveness of the sealant in preventing gas leakage is vital for maintaining the IGU's thermal and acoustic performance. PIB, when used with a secondary sealant like silicone, provides an optimal combination for energy efficiency.

Climate and Environmental Resistance

The choice of sealant should consider local climate conditions. For example, silicone performs well under a wide range of temperatures and UV exposure levels, making it ideal for areas with high sunlight exposure.

Durability and Lifespan

Longevity of the sealant is critical to ensure that the IGU does not require premature replacement. Silicone and polyurethane are noted for their long lifespan and minimal degradation over time.

Additional Modules Options

Module	Functionality	Integration Feasibility	Benefits	Key Considerations
Glass Washing	Cleans glass panes to remove dust, oils, and contaminants prior to assembly.	High - Most lines are designed to seamlessly incorporate washing modules directly before the assembly.	Enhances adhesion of sealants and coatings, crucial for optical clarity and long-term IGU performance.	Requires additional space and utility connections; integration typically straightforward.
Coating Applications	Applies functional coatings such as anti-reflective, hydrophobic, or low-emissivity treatments.	Moderate - Integration complexity varies with the type of coating technology (CVD, sputtering, etc.).	Improves energy efficiency, solar control, and aesthetic properties of IGUs.	May require upgrades to control systems, additional training for operators, and specific maintenance routines.

Technical and Operational Considerations

Space Requirements

Adding modules typically requires additional floor space. Manufacturers need to assess their facility's layout to accommodate these expansions without disrupting the existing workflow.

Control System Integration

The production line’s control system may need to be upgraded or modified to handle the integration of new modules. This ensures synchronized operation across all modules for seamless production flow.

Training and Maintenance

Operators may need additional training to handle the complexities of the new modules. Moreover, each added module introduces unique maintenance challenges and requirements.

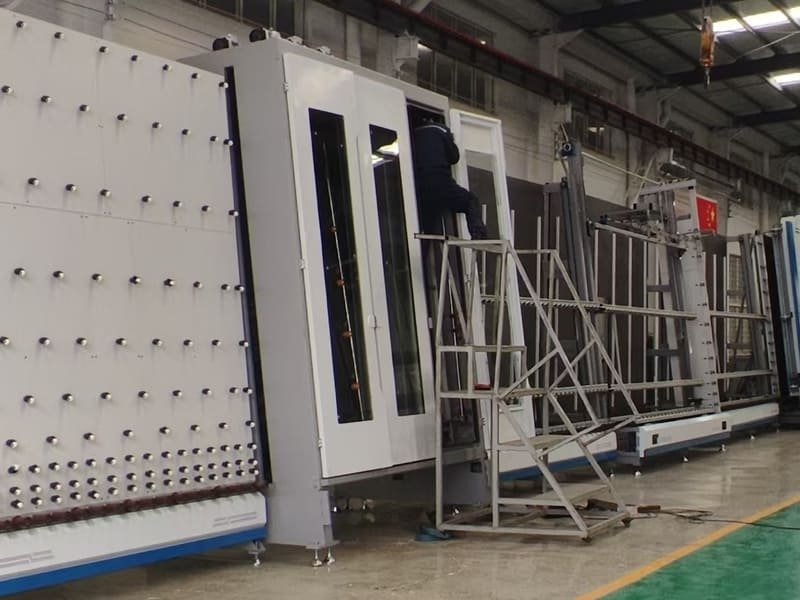

Installation and Setup

Installing and configuring an Automatic Insulating Glass Crossbeam Inflation Production Line requires a blend of technical expertise and specialized skills to ensure the system operates efficiently and meets production standards.

Expertise Area	Skills Needed	Role & Responsibilities
Mechanical Engineering	Mechanical systems understanding, proficiency in engineering drawings, mechanical troubleshooting.	Oversee mechanical setup, assembly, and calibration of machinery components.
Electrical Engineering	Electrical circuitry knowledge, industrial safety standards, control systems expertise.	Integrate electrical systems including power supply and automation controls.
Industrial Automation	PLC programming, HMI systems familiarity, sensor integration, feedback control loops.	Configure and program automation software and control systems for synchronized operation.
Process Engineering	Process optimization, systematic testing, production workflow expertise in glass manufacturing.	Optimize production processes for efficiency and quality.
Software and Network Engineering	Industrial network setup, cybersecurity for industrial systems, software configuration skills.	Set up network connections and manage software configurations for data exchange and monitoring.
Quality Assurance	Quality testing methodologies, data interpretation, quality standards knowledge in glass manufacturing.	Ensure the production line meets operational specifications and quality standards.
Training and Development	Equipment expertise, communication skills, training program development.	Train operational staff on equipment use and maintenance.
Project Management	Organizational abilities, industrial project management, team leadership and communication.	Coordinate installation and setup process, manage project timelines, budget, and quality standards.

Installation and Configuration Process

Planning and Design

Crucial for selecting appropriate equipment and designing an efficient layout.

Installation

Involves the physical assembly and integration of mechanical and electrical components.

Configuration

Setup of control systems and software, along with calibration of production parameters.

Testing and Validation

Operational testing to ensure all components function correctly and adjustments as necessary.

Training and Handover

Comprehensive training for staff and transfer of knowledge for operational success.

Regular Maintenance Requirements for an Automatic IGU Production Line

Visual Inspections

Check for any obvious signs of wear or damage to equipment parts such as belts, rollers, and sealant application systems.

Cleaning

Daily cleaning of the glass washing area, removal of any debris from conveyors and machinery, and ensuring that sensors and cameras are free from obstructions.

Lubrication

Apply lubrication to moving parts such as bearings and joints to ensure smooth operation and prevent premature wear.

Check and Clean Filters

Regular cleaning or replacement of air filters in the glass washing unit and the air supply lines to prevent contamination and maintain optimal operation.

Inspect Seals and Gaskets

Check for leaks or deterioration in seals and gaskets, especially around the gas filling stations, to ensure airtight and moisture-free IGU production.

Test Safety Systems

Weekly tests of emergency stops, safety guards, and other protective systems to ensure they are functioning correctly.

Calibration Checks

Perform calibration checks on sensors and control systems to ensure accuracy in measurements such as glass dimensions and gas fill levels.

Check Electrical Components

Inspect wiring, connections, and electrical panels for signs of wear or damage. Test motor functions and control panels to prevent electrical failures.

Review Software Updates

Check for updates to software systems that control the production line to ensure all systems are up to date and running efficiently.

Deep Cleaning

Conduct a more thorough cleaning of the entire line, including hard-to-reach areas that are not addressed in daily or weekly routines.

Lubrication Review

Comprehensive review and replenishment of all lubrication points on the production line to ensure long-term smooth operation.

Audit Mechanical and Pneumatic Systems

Check and adjust mechanical and pneumatic systems to correct any alignment issues or wear-and-tear anomalies.

Comprehensive Inspection

Conduct a full-scale inspection of the entire line, focusing on mechanical integrity, electrical safety, and overall performance.

Replace Worn Parts

Plan and execute the replacement of parts that are known to wear out such as belts, hoses, and bearings.

Professional Calibration

Engage professional services to calibrate critical equipment such as gas fill analyzers and robotic placement systems.

Additional Considerations

Training

Ensure that maintenance staff are properly trained and familiar with all aspects of the production line to effectively perform maintenance tasks.

Maintenance Logs

Maintain detailed records of all maintenance activities to help predict future maintenance needs and identify recurring problems.

Supplier Support

Utilize supplier support for training on new components or systems and to obtain recommended maintenance schedules and spare parts.

Safety Mechanisms Integrated into the Automatic IGU Production Line

Ensuring the safety of operators is a top priority when designing and installing an Automatic Insulating Glass Crossbeam Inflation Production Line. This equipment involves complex machinery, moving parts, and high-precision processes that can pose significant safety risks without appropriate safeguards. A well-designed production line incorporates a range of integrated safety mechanisms to protect operators and prevent accidents.

Safety Mechanism	Purpose	Compliance/Standards	Maintenance/Check Frequency	Key Features
Emergency Stop (E-Stop) Buttons	Immediate shutdown in case of emergency	ISO 13850 (Emergency stop devices)	Monthly testing	Easily accessible, large buttons placed at critical points for quick shutdown of the entire line or specific machinery.
Safety Guards and Barriers	Prevent access to dangerous moving parts	ISO 14120 (Safety guards)	Weekly visual inspection	Physical barriers and mesh enclosures around hazardous zones to protect workers from mechanical hazards.
Light Curtains & Proximity Sensors	Prevent operator entry into hazardous zones	CE (European compliance for safety equipment)	Quarterly testing	Sensors detect presence of personnel and trigger automatic halts to prevent accidents.
Lockout/Tagout (LOTO)	Prevent accidental startup during maintenance	OSHA standards (29 CFR 1910.147)	Annual audit	Isolates equipment energy sources during maintenance to avoid accidental startup and ensure safety.
Operator Training	Educate operators on safety protocols and machine handling	OSHA, local workplace safety regulations	Ongoing, with periodic refreshers	Regular training sessions and updates to ensure operators understand safe operation procedures.
Automatic Fault Detection & Shutdown	Automatically stops the line in case of malfunctions or abnormalities	ISO 10218 (Industrial robots safety standards)	Continuous monitoring	Real-time monitoring with automatic shutdown in case of faults or irregularities in system behavior.
Overload Protection	Prevent machinery from operating beyond safe limits	Relevant hydraulic and pneumatic safety standards	Monthly check	Sensors and protection systems that prevent overloading of critical components like motors or hydraulic systems.
Glass Handling Features	Minimize breakage risk and injury during glass handling	Industry-specific safety protocols for glass handling	Weekly inspection	Specialized grippers, cushioned handling areas, and robotic arms designed to handle glass safely.

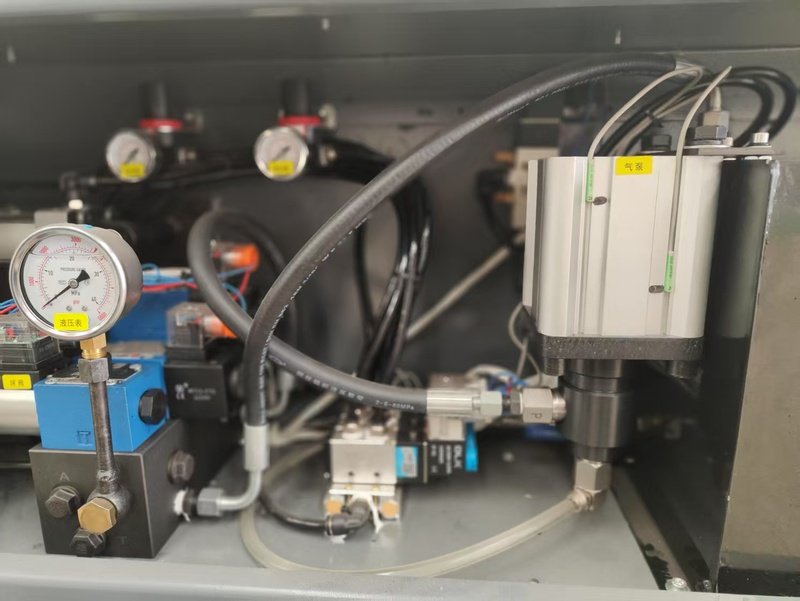

Pneumatic & Hydraulic Safety Valves	Control pressure to prevent over-pressurization	ASME (American Society of Mechanical Engineers) standards	Bi-annual inspection	Safety valves that release excess pressure in pneumatic or hydraulic systems to avoid catastrophic failure.

Safety Features for Glass and Gas Handling

Ensuring the safe handling of glass and gas materials is a critical aspect of an Automatic Insulating Glass Crossbeam Inflation Production Line. Both glass and gases (used for insulating glass units, such as argon or krypton) present significant safety hazards if not managed properly. The production line must integrate specialized safety mechanisms to protect operators from glass breakage and prevent accidents related to the handling and filling of gases under pressure.

Aspect	Safety Mechanism	Purpose	Frequency of Check
Glass Handling Automation	Robotic arms, vacuum lifting systems, cushioned transport	Ensures precise, breakage-free handling of glass panels	Continuous operation, daily checks
Glass Breakage Detection	Vibration sensors, cameras	Detects breakage early to prevent accidents and further damage	Continuous monitoring
Glass Transport Protection	Cushioned conveyors, anti-slip coatings	Minimizes vibrations and damage during glass transport	Weekly inspection
Glass Safety Guards	Physical barriers, light curtains, and proximity sensors	Prevents human contact with dangerous moving parts and glass sheets	Daily visual inspections
Gas Filling Control	Automated gas filling, pressure sensors, flow regulators	Ensures safe and accurate gas injection without over-pressurization or under-filling	Continuous operation, daily checks
Gas Leak Detection	Gas leak sensors, sealing integrity tests	Detects leaks immediately and prevents hazardous gas escape	Continuous monitoring
Gas Ventilation & Exhaust	Proper ventilation systems, air quality monitoring	Prevents dangerous buildup of gases in the work environment	Continuous operation, daily checks
Pressure Relief Valves	Pressure relief valves in gas filling systems	Prevents over-pressurization of gas chambers, ensuring safety of equipment and personnel	Monthly checks
Operator Training	Regular safety training on glass and gas handling	Ensures operators are aware of potential risks and understand safety procedures	Ongoing, periodic refresher courses
Emergency Shutdown	Emergency shutdown systems, emergency stop buttons	Allows for immediate response to gas leaks or other emergencies to protect operators	Regular testing, emergency drills
