Automatic Aluminum Spacer Bending Machine
Automatic Aluminum Spacer Bending Machine

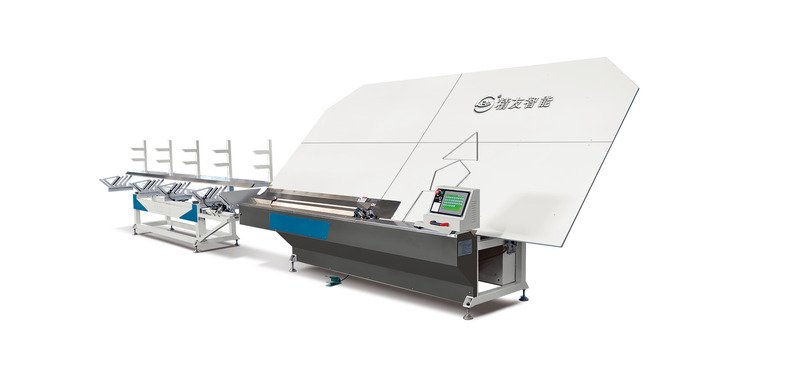

The Automatic Aluminum Spacer Bending Machine is a high-precision, fully automated solution designed to streamline the bending of aluminum spacers in insulating glass production. Ideal for both small and large-scale operations, this machine offers unparalleled accuracy and efficiency, making it an essential tool for modern glass manufacturing lines.
Engineered for the production of dual-glazed and triple-glazed insulating glass units, the Automatic Aluminum Spacer Bending Machine simplifies the traditionally manual spacer bending process, reducing labor costs while improving production consistency. By automating the bending operation, it ensures that each spacer is produced to exact specifications, delivering precise angles, uniformity, and high-quality performance in every piece.
Equipped with advanced features such as a PLC-based control system, adjustable bending angles, and a user-friendly touchscreen interface, this machine allows for rapid configuration changes and easy integration into existing production lines. With its ability to handle a wide range of spacer sizes and thicknesses, it meets the demands of various insulating glass designs, from standard to custom applications.
The Automatic Aluminum Spacer Bending Machine is not only efficient and precise but also designed with safety features, ensuring operator protection during operation. Its robust build and reliable components provide long-term durability and minimal maintenance, making it a valuable investment for any glass production facility looking to scale up their spacer manufacturing process.
You will find the key technical specifications of the Automatic Aluminum Spacer Bending Machine, including its performance capabilities, size and capacity, and operational limits. These parameters provide essential insights into the machine’s capabilities, helping you assess its suitability for your production needs.
| Model | JYZ-03 | JYZ-02 |
|---|---|---|
| Power Supply | 380V/50Hz | 380V/50Hz |
| Total Power | 4.0kW | 2.0kW |
| Max. Alu-bar Size | 2,000×2,000mm | 2,500×2,500mm |
| Min. Alu-bar Size | 300×300mm | 350×350mm |
| Alu-bar Specification | 5.5~26.5mm | 5.5~26.5mm |
| Alu-bar Thickness | 6.5mm | 6.5mm |
| Bending Angle Error | ±0.3° | ±0.3° |
| Bending speed | <30s/unit (1000×1000mm) | / |
| Working Air Pressure | 0.5~0.8MPa | 0.5~0.8MPa |
| Overall Dimension | 10,000×2,200×2,600mm | 4,400×1,600×2,300mm |
| Weight | 1,500kg | 400kg |
- What Are the Key Features?
High-Precision Bending Technology
Flexible Spacer Size and Thickness Adjustment
PLC-Based Control System
User-Friendly Touchscreen Interface
Automatic Angle Adjustment
High-Speed Production
Durable and Robust Build
Energy-Efficient Operation
Minimal Maintenance Requirements
Safety Features
Seamless Integration with Existing Production Lines
Customizable Programs for Different Spacer Designs
- Core Components of Automatic Aluminum Spacer Bending Machine
Servo Motor System
Bending Die
Material Feed System
Control Panel (HMI Interface)
Hydraulic System
Cutting System
Alignment and Positioning System
Do You Have any Customization Options?
The Automatic Aluminum Spacer Bending Machine offers a range of customization options that enable clients to tailor the machine to meet their specific production requirements. We understand that different glass production environments have varying needs in terms of materials, efficiency, and product specifications. Therefore, we provide a variety of customizable features that can be adjusted to optimize the machine’s performance for different applications.

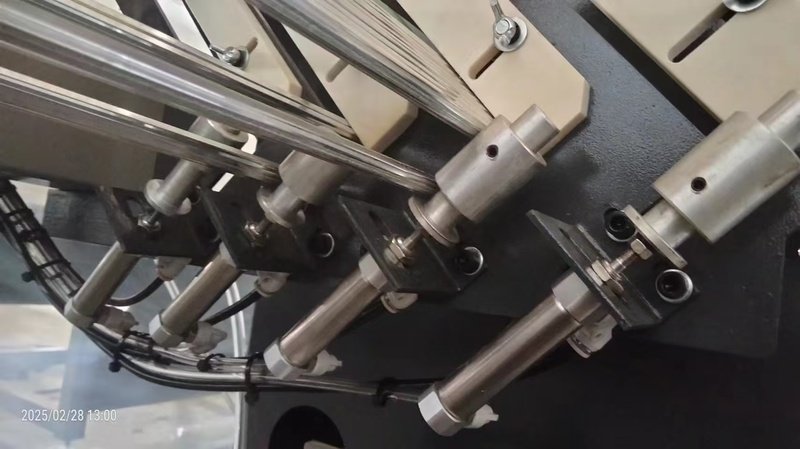

- 1. Bending Angle Range
Customizable bending angle options are available to suit various aluminum spacer profiles. The machine can be adjusted to bend aluminum strips at different angles ranging from 90° to 180°, depending on the specific requirements of your glass spacer design. This ensures flexibility in processing different spacer types, whether standard or custom-shaped profiles are needed.

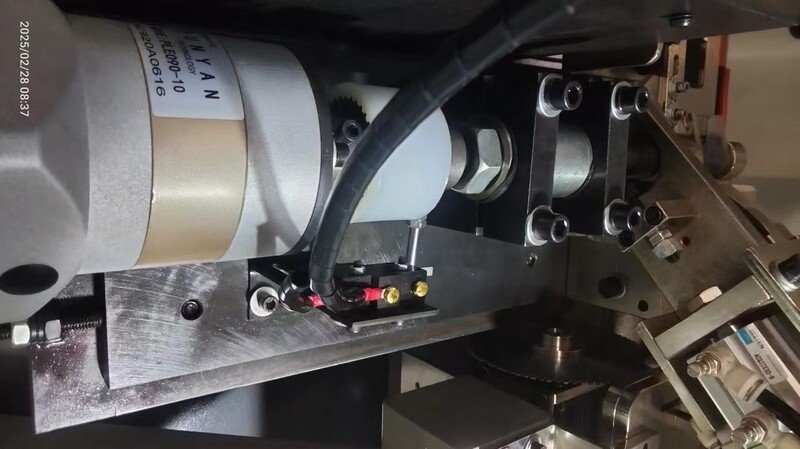

- 2. Spacer Size Adjustment
To accommodate different spacer sizes and glass types, the machine can be customized to handle aluminum strips with varying thicknesses and widths. The strip feeding system can be fine-tuned to accommodate spacer profiles ranging from 6 mm to 24 mm in width, ensuring compatibility with both standard and larger glass unit applications. This feature enhances the machine’s versatility, making it ideal for both small and large-scale production lines.

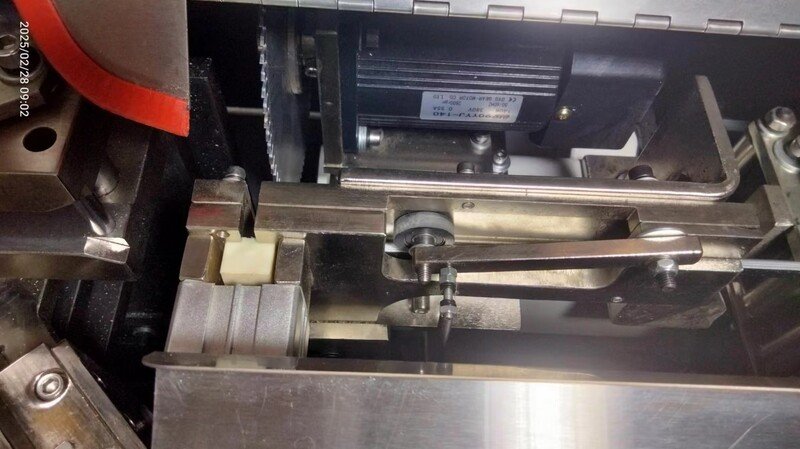

- 3. Multi-Layer Spacer Capability
For advanced manufacturing, the machine can be configured to process multi-layer aluminum spacers, used in specialized IGU designs. The system can handle both single-layer and multi-layer profiles, allowing for multiple layers of aluminum spacers to be bent and processed simultaneously. This option is particularly useful for energy-efficient or high-performance IGUs that require a more robust spacer design.

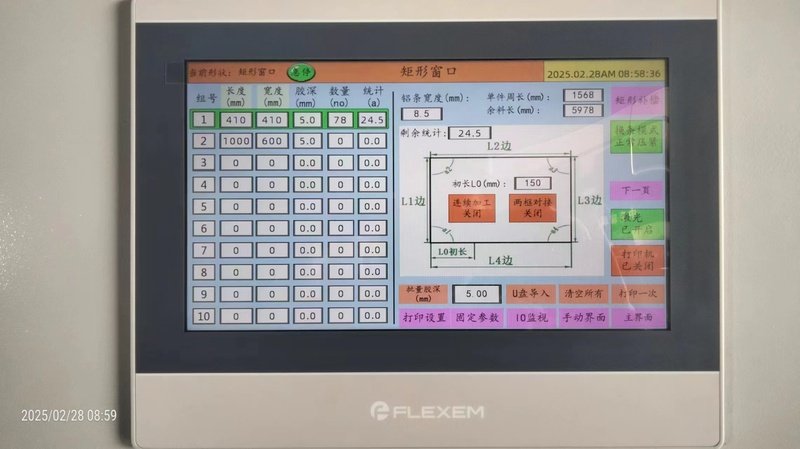

- 4. Speed & Throughput Control
The speed and throughput settings of the machine can be adjusted to match production requirements. Whether you need a higher production rate for large-scale operations or slower processing speeds for higher precision, the machine can be customized to suit. The servo motor system allows for fine control of bending speeds, and with advanced speed control, you can ensure minimal material wastage and consistent product quality.

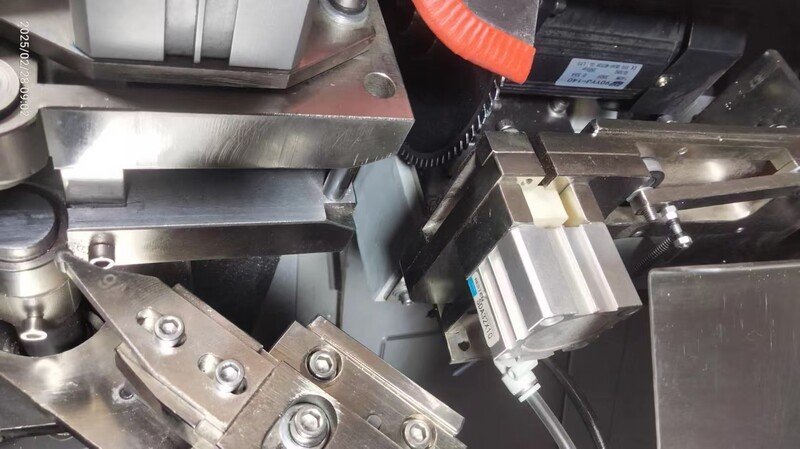

- 5. Integrated Cutting and End Processing
The cutting mechanism can be tailored to meet the specific needs of your production. Options include precision cutting tools for high-speed cutting or more delicate trimming tools for finer details. Additionally, clients can opt for end processing customization, which enables the machine to perform specific operations like notching or perforating the aluminum strip at predefined positions, based on customer requirements for specialized IGUs.

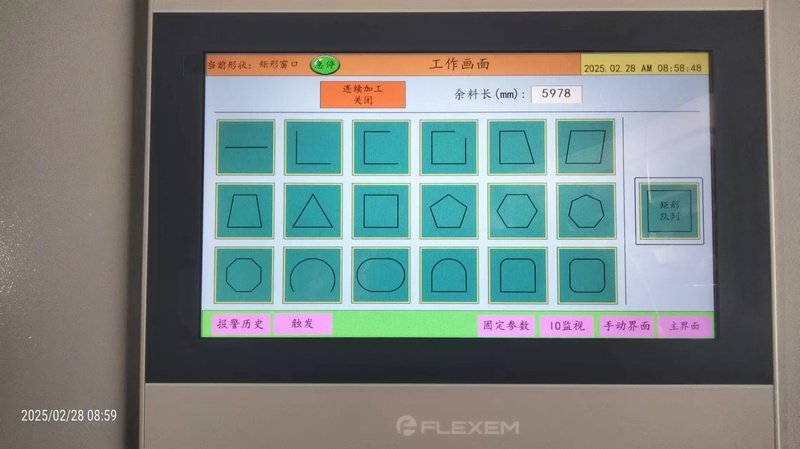

- 6. Touchscreen Control Panel (HMI) Configuration
The Human-Machine Interface (HMI) is available in different configurations to match your operational preferences. The touchscreen control panel can be customized for language options, layout preferences, and additional features like real-time diagnostics and production tracking. The interface provides flexibility for setting and adjusting parameters, ensuring a seamless user experience and efficient machine operation.

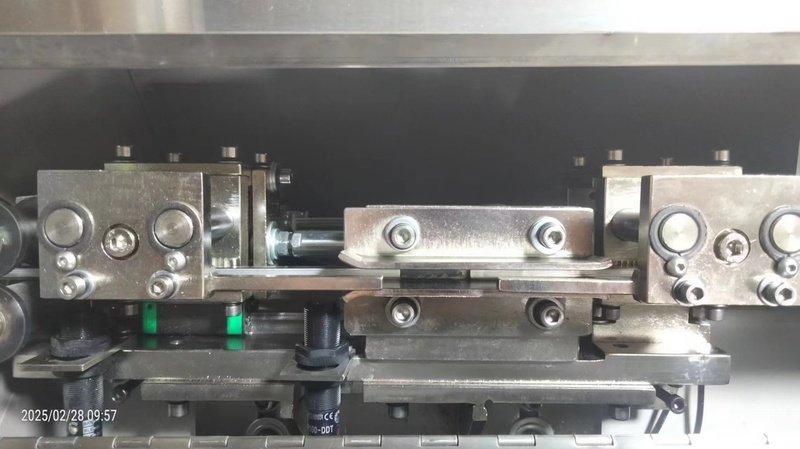

- 7. Material Type Compatibility
The machine can be adjusted to handle different types of aluminum, including standard, coated, anodized, or corrosion-resistant aluminum strips. This customization ensures that the machine can process a wide range of material types, providing flexibility to meet specific product quality and material compatibility needs in the glass manufacturing process.

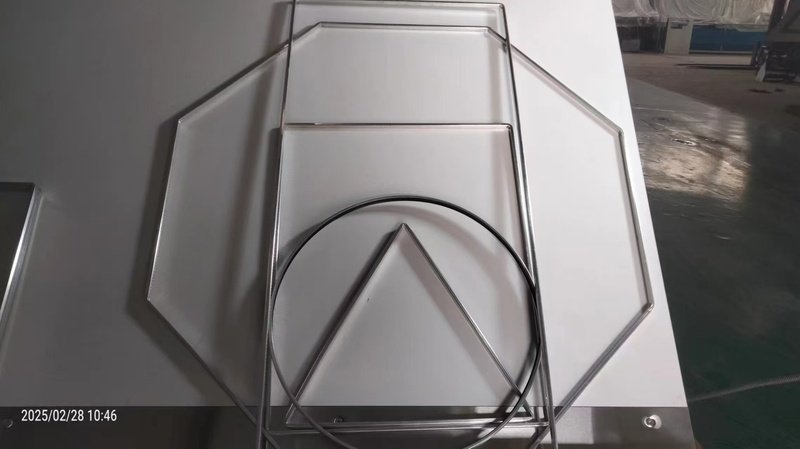

- 8. Customizable Bending Dies
For highly specialized spacer designs, custom bending dies can be created to match unique aluminum spacer profiles. The machine can be equipped with interchangeable bending dies, allowing you to process a variety of aluminum profiles with ease. Custom dies ensure precise, consistent, and high-quality results, particularly for specialized insulating glass applications.

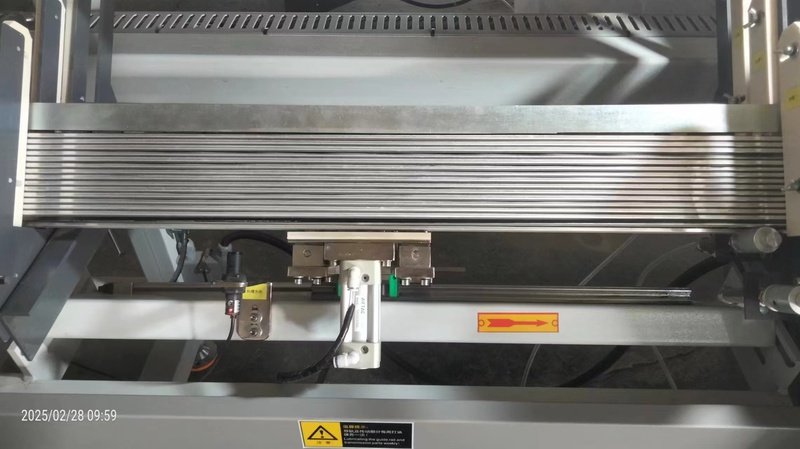

- 9. Automated Spacer Handling System
An automated spacer handling system can be integrated with the machine to streamline the production process. The system allows for automatic transfer of aluminum spacers to the next stage in the production line, improving workflow and minimizing manual handling. This feature is particularly useful for large-scale operations where efficiency and automation are key to reducing labor costs and enhancing throughput.

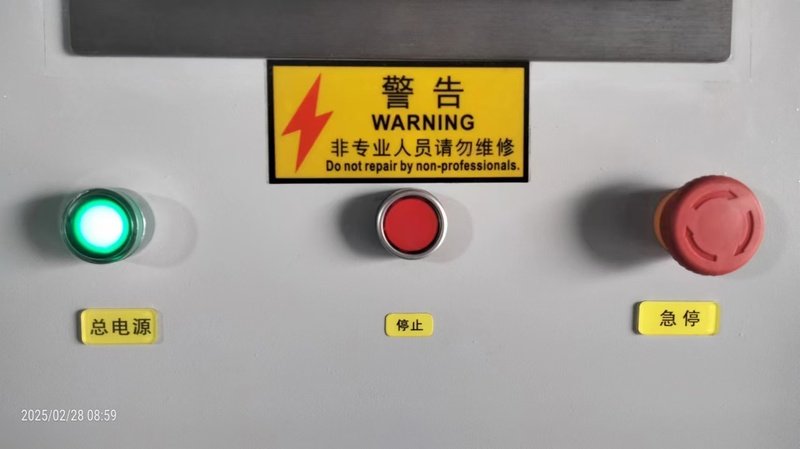

- 10. Safety Features Customization
For enhanced safety, the machine can be customized with additional safety features such as emergency stop buttons, safety guards, and automated shut-off systems. Safety protocols can be tailored to your specific facility’s needs to meet local regulatory standards and ensure a safe working environment for your team.
- 11. Integration with Existing Production Lines
The machine can be integrated with your existing production line systems, enabling smooth workflow and improved automation. Customization options include the integration of the spacer bending machine with glass washing, sealing, or assembly lines, which can optimize the entire process and reduce handling times between stages. These integration options allow for a seamless, fully automated production line.

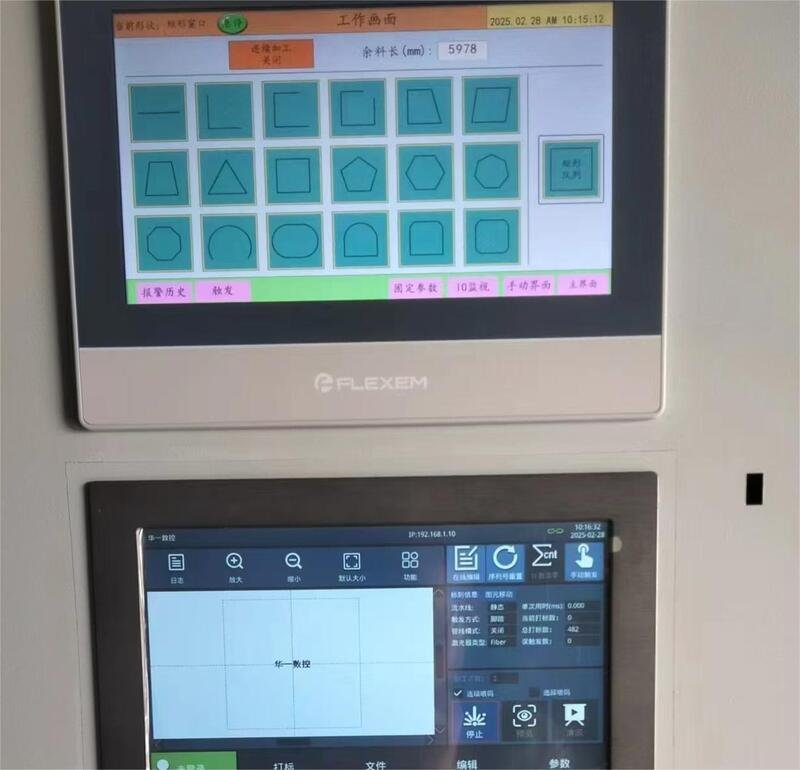

- 12. Data Logging and Remote Monitoring
The machine can be equipped with data logging and remote monitoring capabilities. These options enable you to track key performance indicators (KPIs), monitor production data, and troubleshoot remotely through an internet connection. Customizable parameters allow you to configure the machine to send real-time data to your enterprise resource planning (ERP) or production management systems, enhancing data-driven decision-making and predictive maintenance.
